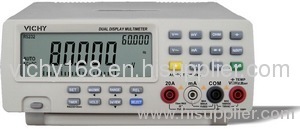

VC8145 4 7/8 Auto Range Bench-Type DMM VC8145 manufacturer from China SHENZHEN VICIMETER TECHNOLOGY CO., LTD

Payment Terms:	T/T,L/C,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: VC8145

Packing: gift box

Brand Name: shenzhen vichy

Production Capacity: 50000

Delivery Date: in 25 days

This bench type digital multimeter with many functions is a new product of 2012, it's also one of our good-sales products in the market

Feature:

1.Large LCD, High contrast, wide visual angle LCD display, white backlight;

2.Dual-display: Main display 80000, Vice-display 80000, analog bar 21 sect., unit, and function symbol complete;

3.50 kinds of measuring function, With basic DCV, ACV, DCA, ACA, Ω, CAP, Hz , TEMP, diode and Continuity measuring function etc;

4.Frequency measurement can reach 80MHz;

5. Standard function generator:18 kinds of frequency,1% to 99% Duty cycle,1800 waves output;

6. Single analyzed:(AC+DC) measuring synchronous, (AC+Hz) measuring synchronous, (DC+dBm) measuring synchronous, (dBm+Hz) measuring synchronous, (Hz+Duty) measuring synchronous, (℃+℉) displaying synchronous;

7. Resistance measuring: 0.01Ω-80MΩ;

8. Capacitance measuring: 10nF-100μF;

9.Temperature measuring: -50℃-1372℃,-58℉-2502℉;

10. dBm measuring: 20pcs load Resistance choice;

11. Auto data update hold;

12. positive, negative peak data auto hold;

13. 36 hours dynamic record: MAX, MIN, AVG, MAX-MIN;

14. Relative measuring: REL Relative percent: REL%;

15. 0.1%-99.9% pulse duty cycle measuring;

16. Set upper limit, lower limit area measuring;

17. Photo-electricityinsulation RS-232 computer interface;

18. Timing measuring function;

19. AC measuring adopts High accurate RMS, with broad frequency band and AC+DC measuring function. It can measure the accurate virtual value of AC by any wave.

|Technical|

Basic function	Range	Accuracy
DCV	80mV/800mV/8V/80V/800V/1000V	±(0.05%+5)
ACV	80mV/800mV/8V/80V/750V	±(0.5%+30)
DCA	80mA/800mA/8A/20A	±(0.1%+5)
ACA	80mA/800mA/8A/20A	±(0.5%+30)
Resistance	800Ω/8kΩ/80kΩ/800kΩ/8MΩ/80MΩ	±(0.05%+3)
Frequency	80Hz/800Hz/8kHz/80kHz/800kHz/8MHz/80MHz	±(0.05%+2)
Capacitance	10nF/100nF/1uF/10uF/100uF	±(3.5%+20)
Temperature	-50℃~1372℃ / -58℉~2502℉	±(1.5%+1°)
Quadrate Wave	3V / 0.5Hz~5kHz / 1%~99%	±0.05%
